Features:
29" Geometry-
Toptube:23.6"
Seat tube:70
Chainstay:18.3"
Standover:30.6"
Headtube:71
BB Height:12"
26"Geometry-
Toptube:22"
Seat tube:72
Chainstay:17"
Standover: 28.5"
Headtube:71
BB Height:12"
24"Geometry-
Toptube:21.25"
Seat tube:70
Chainstay:15.9"
Standover: 26.2"
Headtube:73.5
BB Height:11.1"
20"Geometry-
Toptube:20.25"
Seat tube:70
Chainstay:14.3"
Standover: 22.9"
Headtube:73
BB Height:11"
Specs-

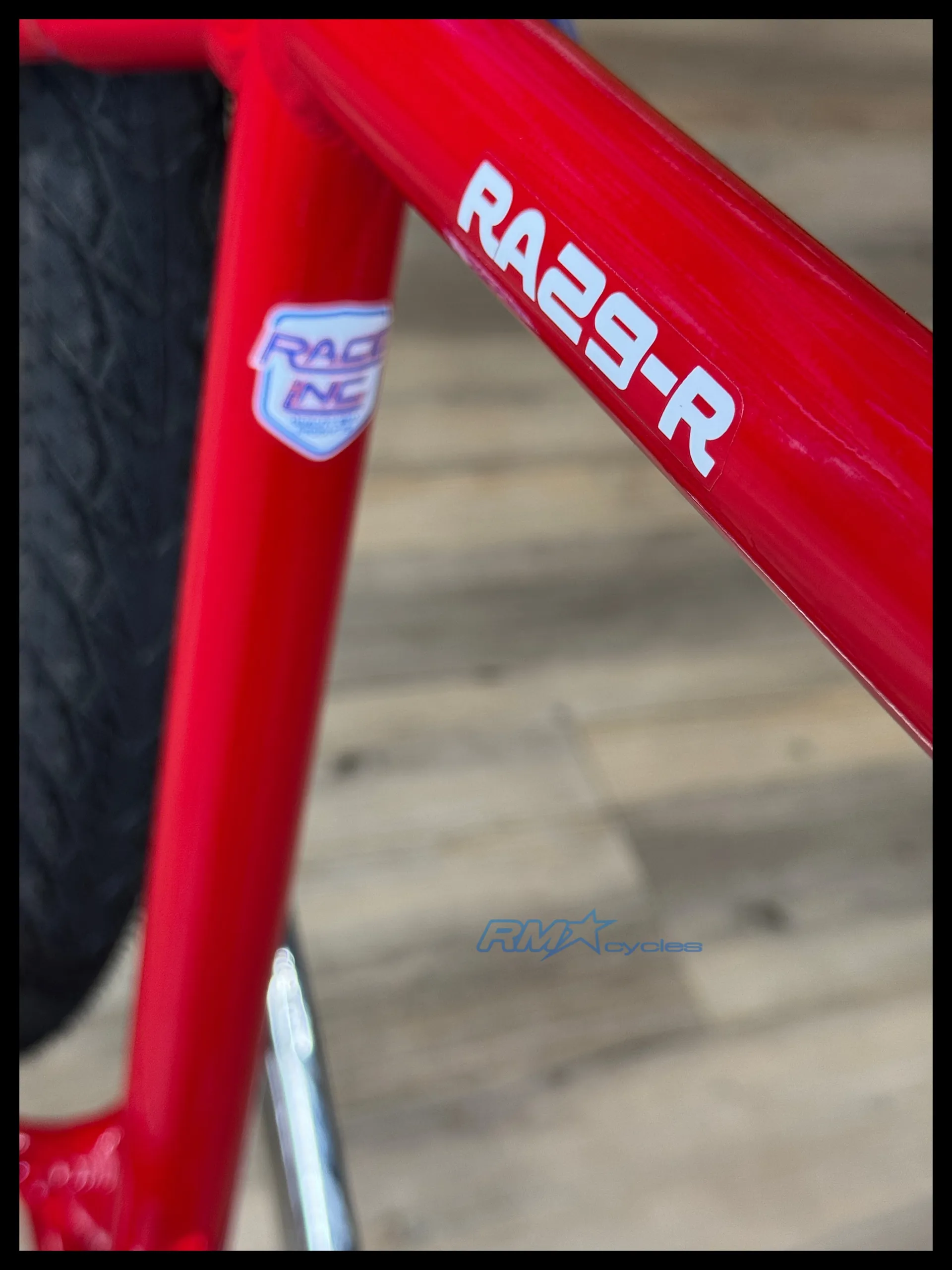

Frame
100% 6061T-6 aluminum, Retro design, one piece "Loop tail" rear stays, dropout slotted 20mm axle (10mm reducer washers included) American BB shell
Fork
RA29-R : 100% 4130 chromoly, 1 1/8" Steerer tube Race Inc. Design, Dropout openings for 20mm axle ( 10mm reducer washers included), 28.6mm OD. Blades, tapered legs and 5mm dropouts
RA26-B:100% 4130 chromoly Bottem forks, 1 1/8" Steerer tube Race Inc. Design, Dropout openings for 20mm axle ( 10mm reducer washers included), 28.6mm OD. Blades, tapered legs and 5mm dropouts
RA-26-R:100% 4130 chromoly Race Inc fork, 1 1/8" Steerer tube Race Inc. Design, Dropout openings for 20mm axle ( 10mm reducer washers included), 28.6mm OD. Blades, tapered legs and 5mm dropouts
RA24-R:100% 4130 chromoly Race Inc, 1 1/8" Steerer tube Race Inc. Design, Dropout openings for 20mm axle ( 10mm reducer washers included), 28.6mm OD. Blades, tapered legs and 5mm dropouts
RA20-R:100% 4130 chromoly Race Inc, 1 1/8" Steerer tube Race Inc. Design, Dropout openings for 20mm axle ( 10mm reducer washers included), 28.6mm OD. Blades, tapered legs and 5mm dropouts

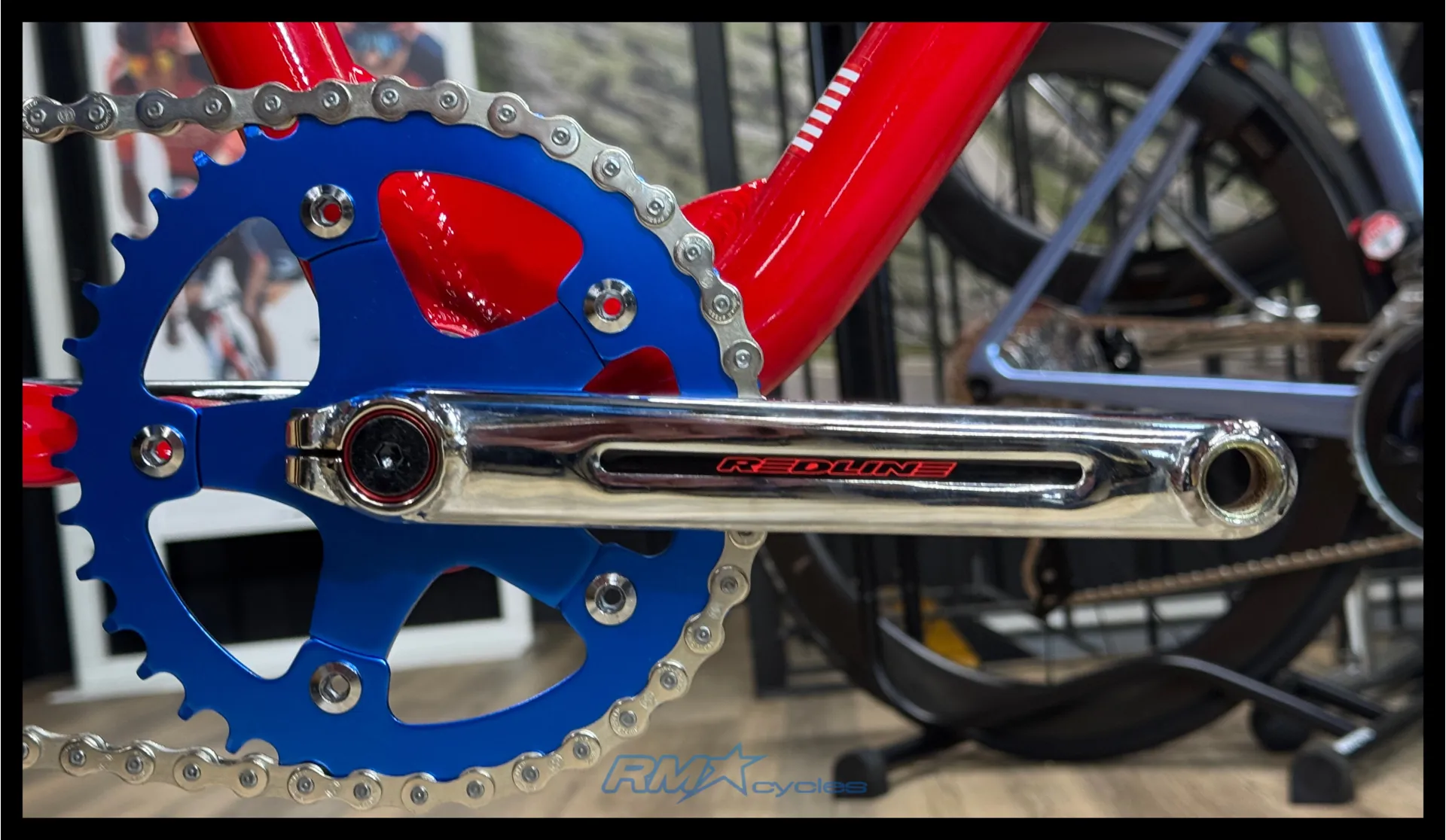

Crankset
RA29-R & RA26-R: Redline Flight3-piece 4130 Tubular chromoly 175mm cranks, double pinch bolt clamp, 6 spline spindle
RA24-R & RA20-R: 175mm hot forged chromoly, one piece
Pedals
Round bear trap style aluminum cage & bodyw/ Cr-Mo Axle
Chain
Box Two BMX 1/8" x 112 link - nickel
Tires
RA29: 29" x 2.0" IRC Intezz, dual purpose treadtires front and rear
RA29-B: 29" x 2.125" Duro, Brick style tread pattern
RA24: IRC Siren Comp 24" x 1.75"
RA20: 20 x 2.125" front & 20" x 1.75" rear
Wheels/ Rims
RA29-R, RA29-B &RA26-R: 36h double-wall 6061 T-6 aluminum rims
RA24-R & RA20-R:36h single-wall 6061 T-6 aluminum rims

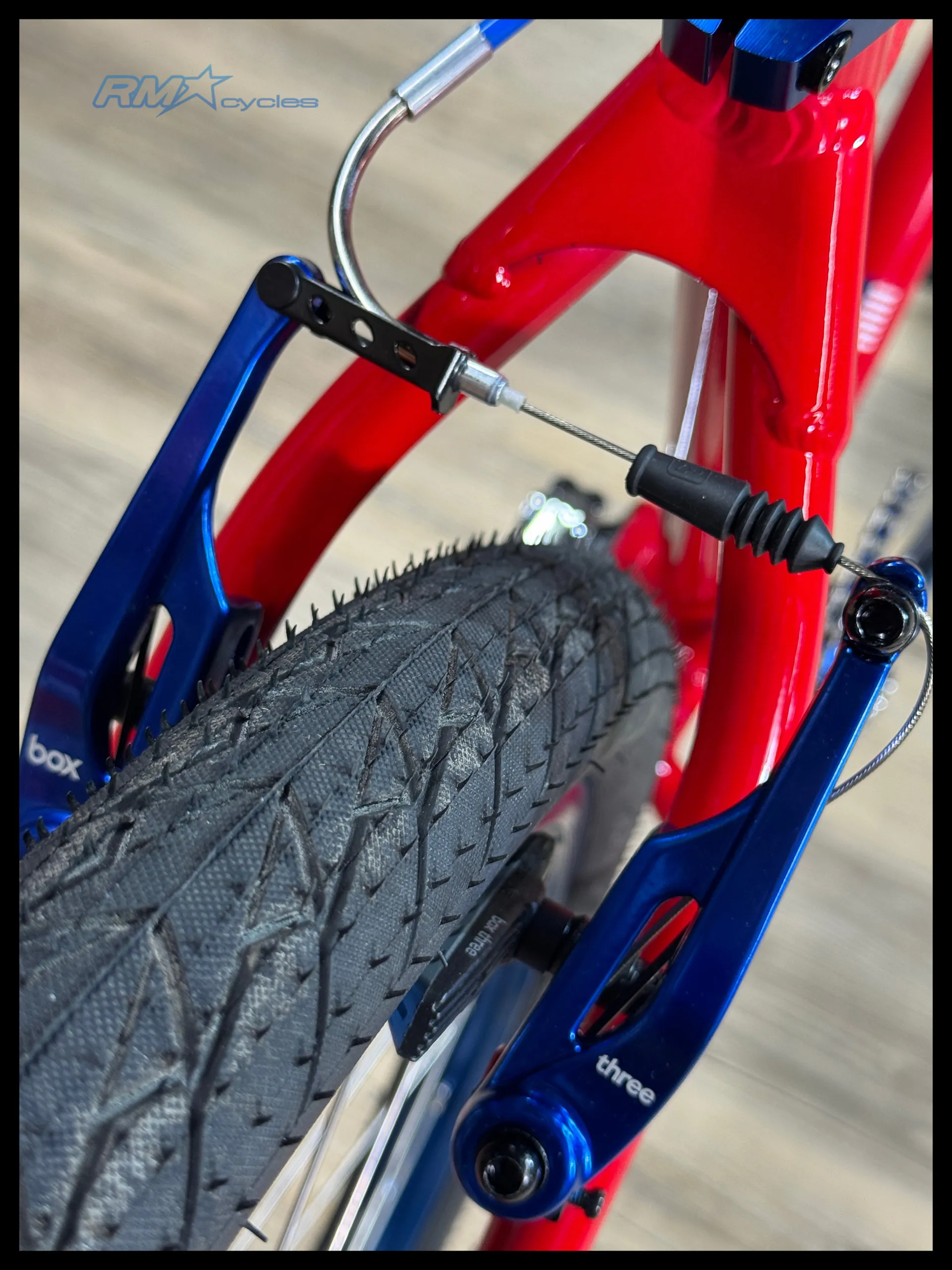

Brakes
Box ThreeV-Brake, Cold forged 6061 T-6 aluminum, dual compound brake pads
Brake Lever(s)
Box Three V-point lever, long reach with internal clamp allowing lever to mount on left or right side of the handlebar
Grips / Tape
Diamond pattern surface, dual density materialGrips
Handle Bar
RA29-R RA26-R & RA26-B & RA24-R: 100% 4130 chromoly Race Inc. Retro Crusier design, 6" rise, 29" wide, 7 degrees back sweep, 2 degree up sweep
RA20-R:100% 4130 chromoly Race Inc. Retro Crusier design, 8" rise, 29" wide, 7 degrees back sweep, 2 degree up sweep

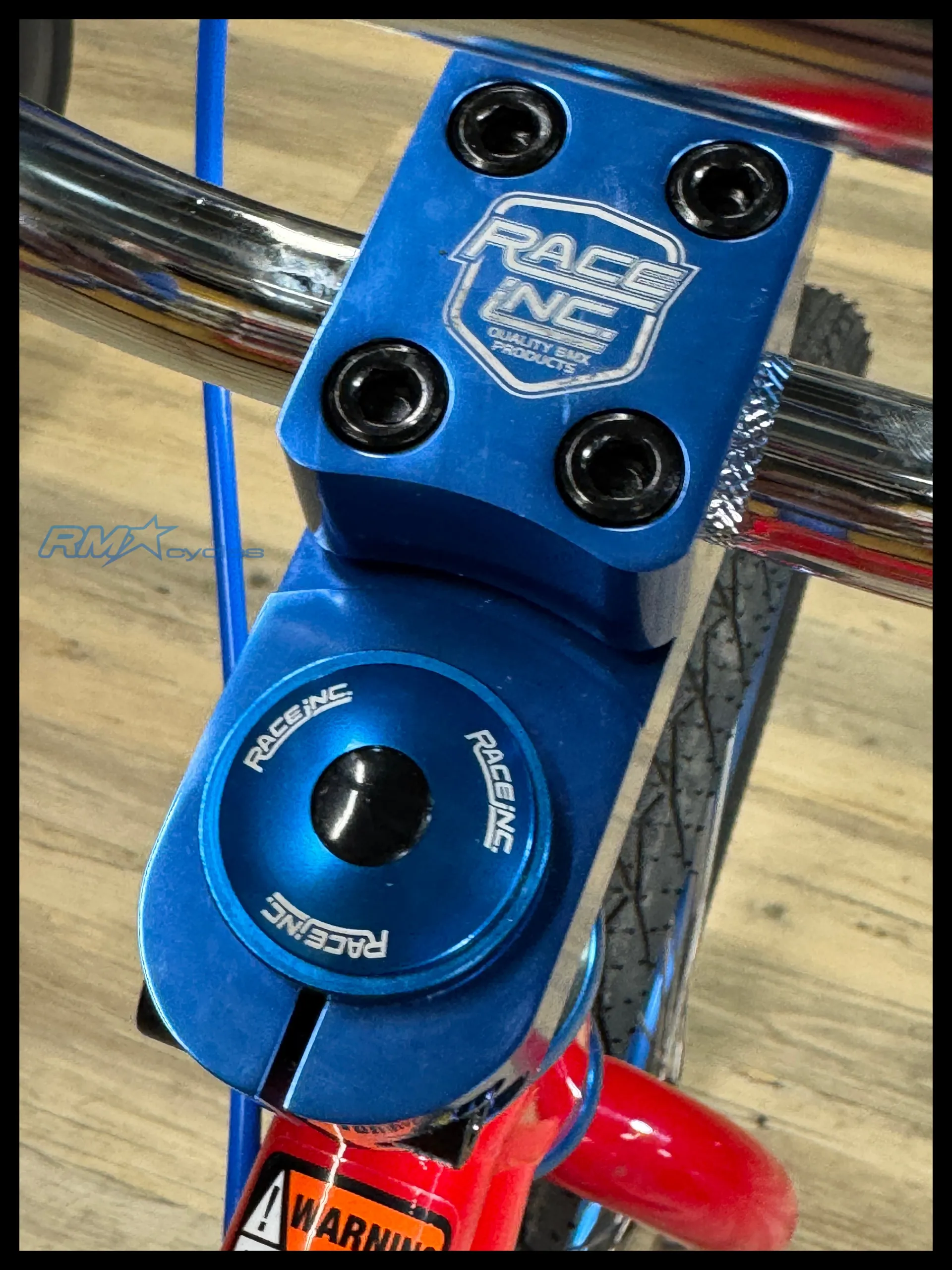

Stem
6061 T-6 aluminum top load stem with cnc'd finish machining, 55mm reach
6061 T-6 aluminum top load stem with cnc'd finish machining, 48mm reach
Headset
Sealed 1 1/8" bearings & Aluminum/Steel sealed Threadless external cups
Saddle
Vintage style road saddle with rivet& high density foam
Seat Post
adjustable 6061 T-6 aluminum CNC turned post, forged double bolt head, 27.2mm
Seat Post Clamp
6061 T-6 aluminum single bolt, 31.8mm

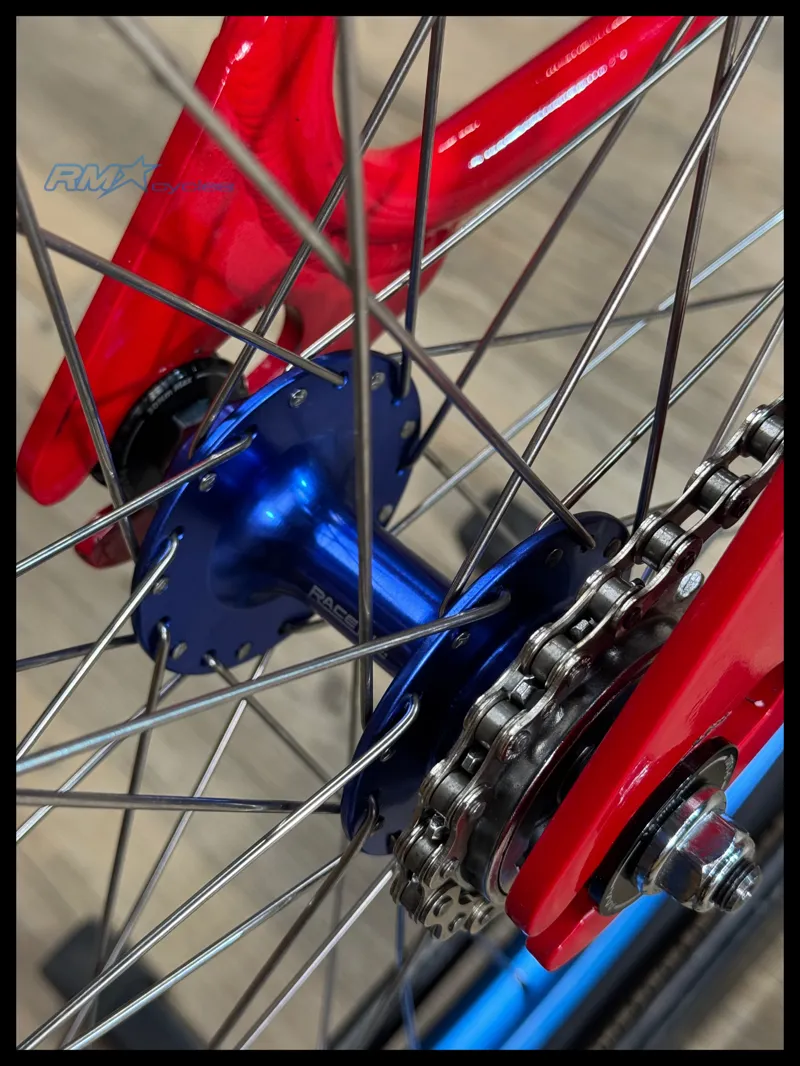

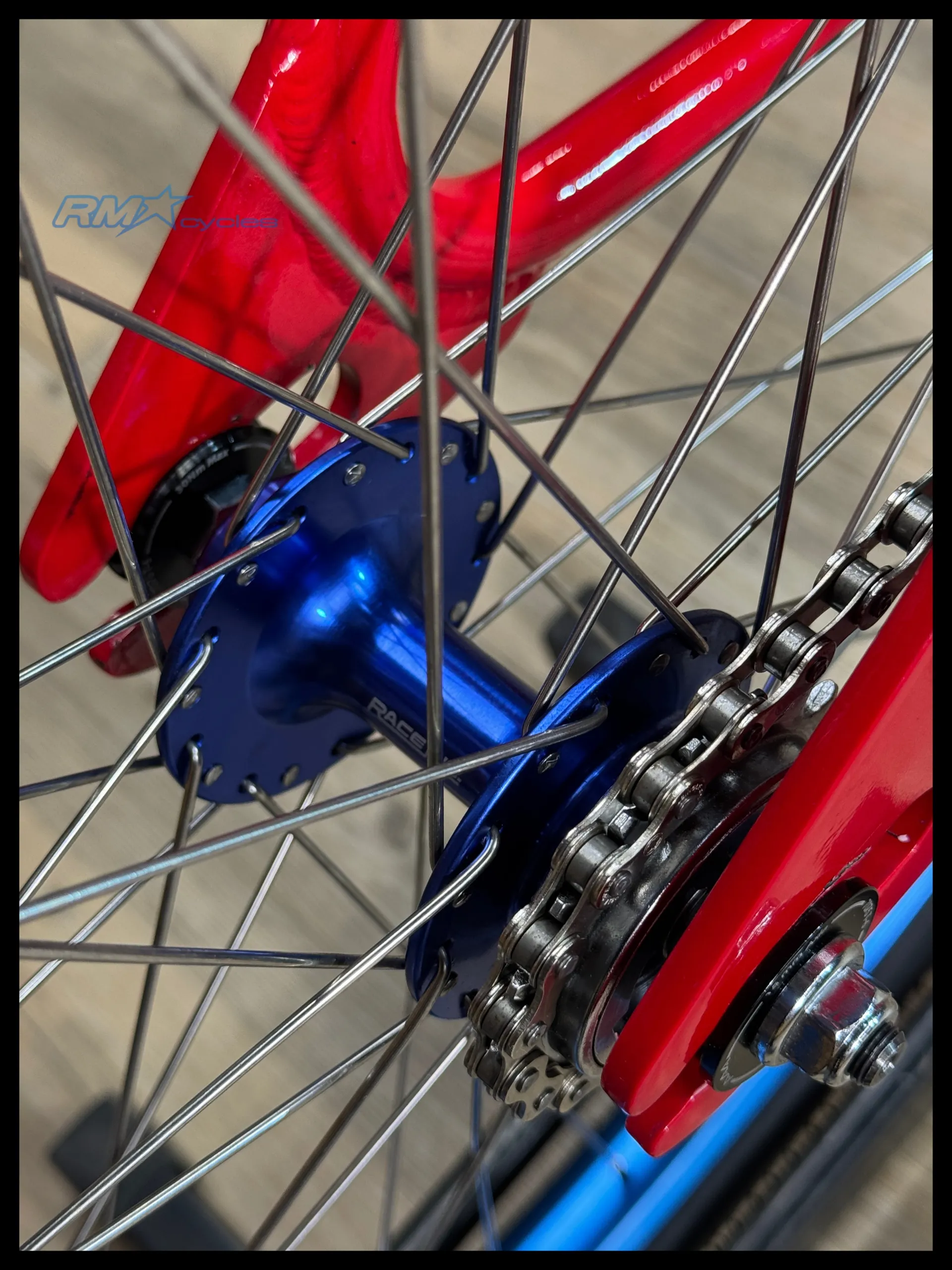

Front Hub
High flange hubs design, 6061 Aluminum with machined cut-outs, sealed bearings, heat treated 3/8" (10mm) axles & track axle nuts with modular washers
Rear Hub
High flange hubs design, 6061 Aluminum with machined cut-outs, sealed bearings, heat treated 3/8" (10mm) axles & track axle nuts with modular washers
Freewheel
16T unsealed
Axle
3/8"
Sprocket
38t aluminum chainring with 5-arm aluminum spider
aluminum chainring with 5-arm aluminum spider
