The Checkpoint+ SL 5 is an electric gravel bike featuring a TQ HPR60 motor, 360 Wh battery, OCLV Carbon frame, and 12-speed Shimano GRX 1x shifting.
The Checkpoint+ SL 5 is an electric gravel bike featuring a TQ HPR60 motor, 360 Wh battery, OCLV Carbon frame, and 12-speed Shimano GRX 1x shifting.
Trek

Trek Checkpoint+ SL 5 E-Gravel Bike In Fjord Blue/Cobalt Blue

£4,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS AT A GLANCE


We want you to be happy with your purchase. If something isn’t right, we’ll fix it quickly.


ONLINE ORDERS (INCLUDING CLICK & COLLECT PLACED ONLINE)


You have a legal right to cancel your order within 14 days of receiving your items (or collecting them).

- Tell us within 14 days that you want to cancel

- You then have 14 days to return the item(s)

- We’ll refund you within 14 days of receiving the item(s) back or receiving proof of return


Refund includes: the item price + standard outbound delivery (if you cancelled the entire order).

Return postage: paid by the customer unless the item is faulty or incorrect.


30-DAY GOODWILL RETURNS (UNUSED ITEMS)


In addition to your legal rights, we offer a 30-day goodwill returns window for most items provided they are:

- unused, unworn, unwashed

- returned in original condition

- returned with tags attached and original packaging where possible


This goodwill policy is separate from your legal cancellation rights.


FAULTY OR INCORRECT ITEMS


If your item is faulty, not as described, or we sent the wrong item, you have rights under the Consumer Rights Act 2015.

- Within 30 days, you may be entitled to a full refund

- We’ll cover return costs or arrange collection for faulty/incorrect items


BIKES & OVERSIZED ITEMS (COLLECTION FEES)


Some items require a courier collection service due to size/weight. For change-of-mind returns, a collection fee applies:

- Bikes or bike boxes: £60

- Indoor bikes: £100

- Turbo trainers, wheels, workstands, trainer mats and any item over 61cm x 46cm x 46cm: £15


These fees are waived if the item is faulty or incorrect.


CUSTOM BUILDS & SPECIAL ORDERS


Custom-built bikes and special orders may be exempt from the legal 14-day cancellation right if they are made to your specification.

Faulty/not-as-described rights always apply.


CONTACT


Email: returns@rmcycles.co.uk

Phone: 01580 765612


RETURNS ADDRESS


RM Cycles Ltd, Returns Department

Unit 3A, Leigh Green Industrial Estate

Appledore Road, Tenterden

Kent, TN30 7DE


For full details, please see our Full Returns & Refunds Policy.

Trek Checkpoint+ SL 5 E-Gravel Bike In Fjord Blue/Cobalt Blue

Season:2026

Brand:Trek

Code:57446BLU

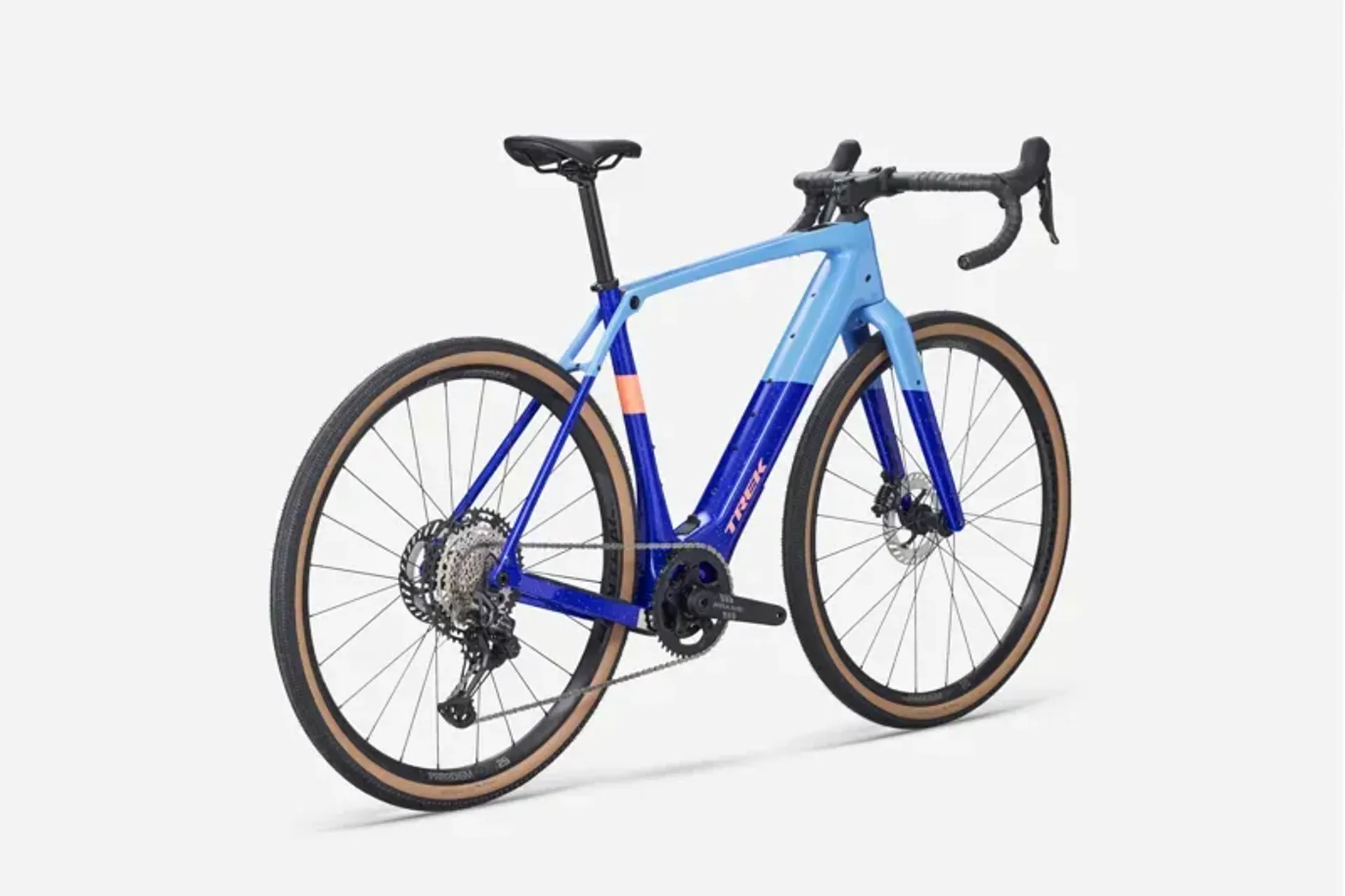

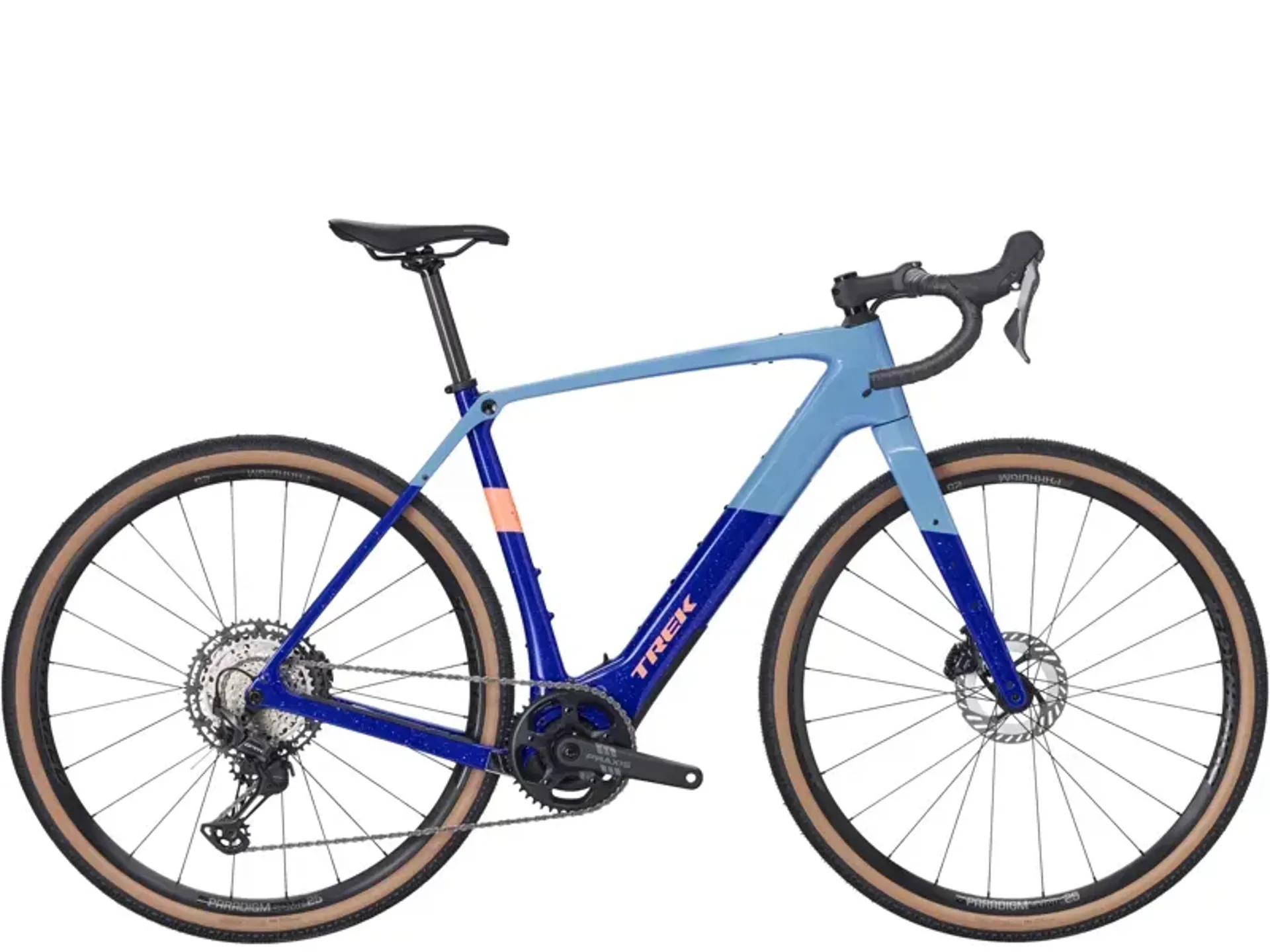

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance, featuring an OCLV Carbon frame and endurance geometry for comfortable long-haul riding.

This bike includes a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with durable alloy wheels and 12-speed Shimano GRX 1x shifting.

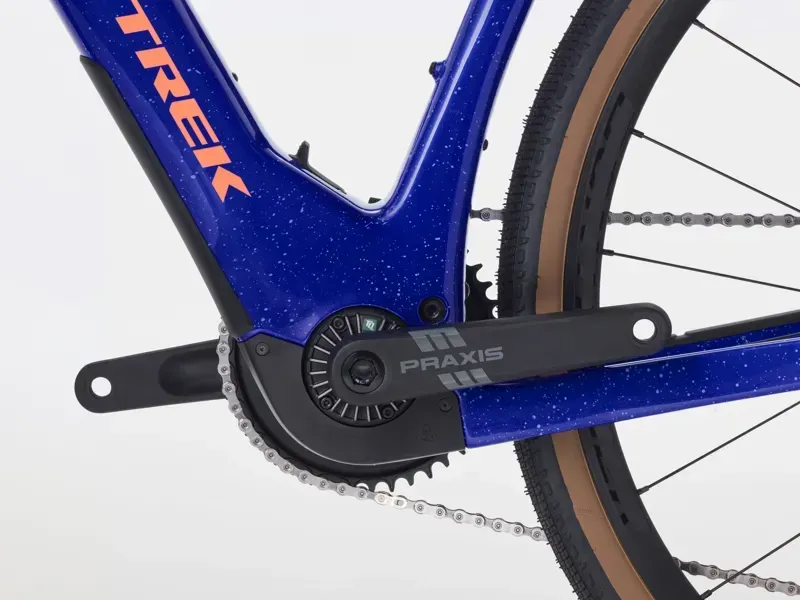

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 25 kph (18 mph) with 80 km (50 miles) of range (in Eco mode). You can choose how much boost you get and when you get it with three assist modes.

Explore even further with an optional 160 Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.

IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger for longer. Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.

The Trek Central app seamlessly connects to your Checkpoint+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.

Shimano GRX was designed from the ground up for gravel adventure, featuring gravel-specific ergonomics, optimised gearing options, rugged reliability, and a quiet, stable drivetrain.

Features:

  • Room for tyres of up to 50 mm wide (as measured).
  • Mounts on the frame and fork for front and rear racks, mudguards, and Adventure Frame and Triangle Bags.
  • Designed to fit extra hydration in addition to all your bags.
  • Compatible with a suspension fork (up to 40 mm travel) and a dropper post.
Technical Information
  • Frame
    500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

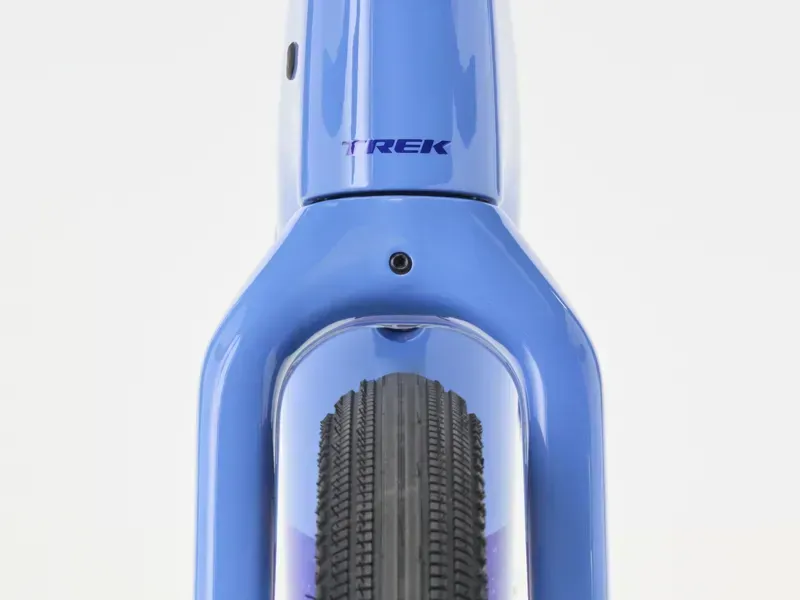

  • Fork
    Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
  • Weight
    ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger

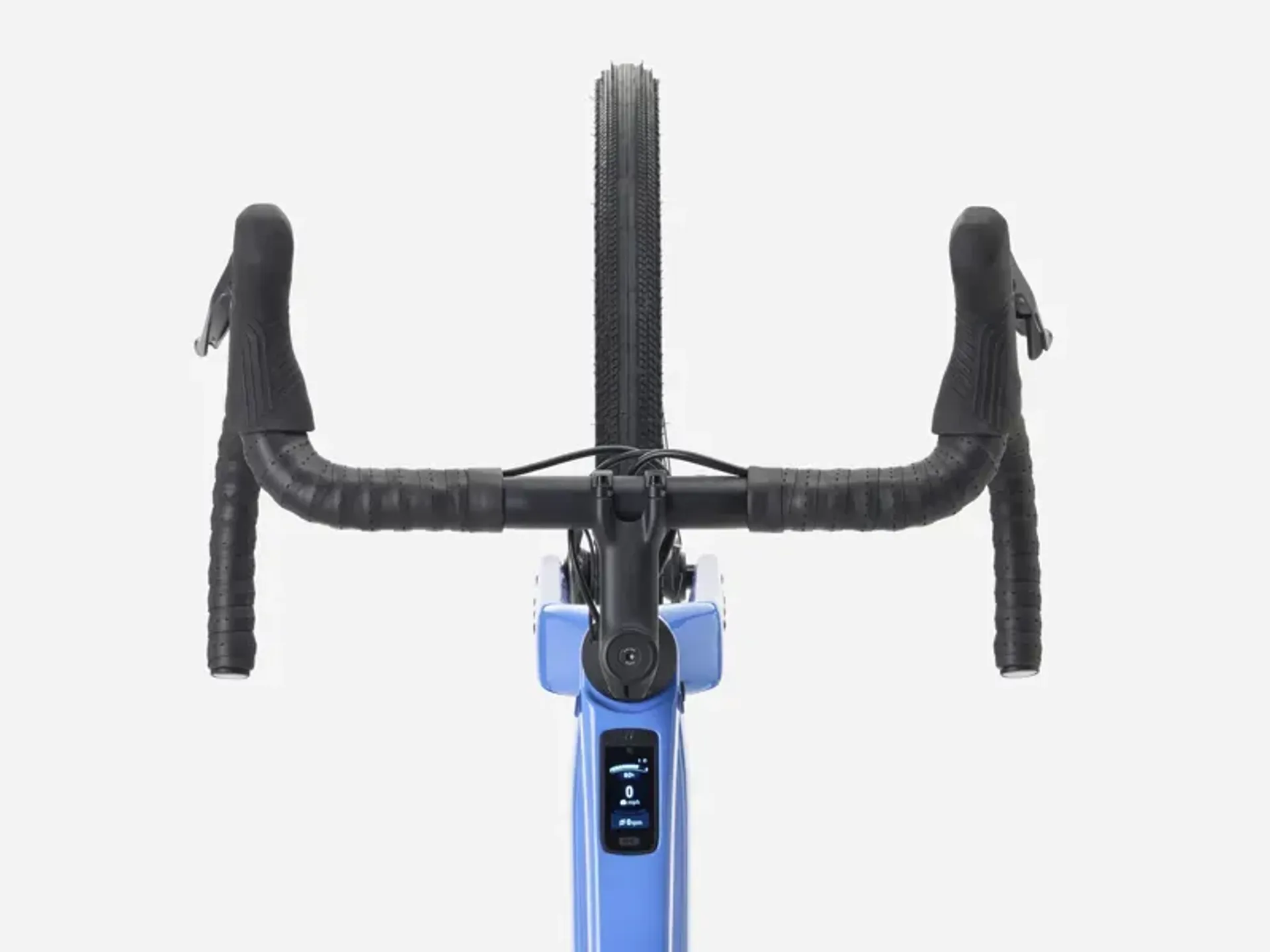

  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity

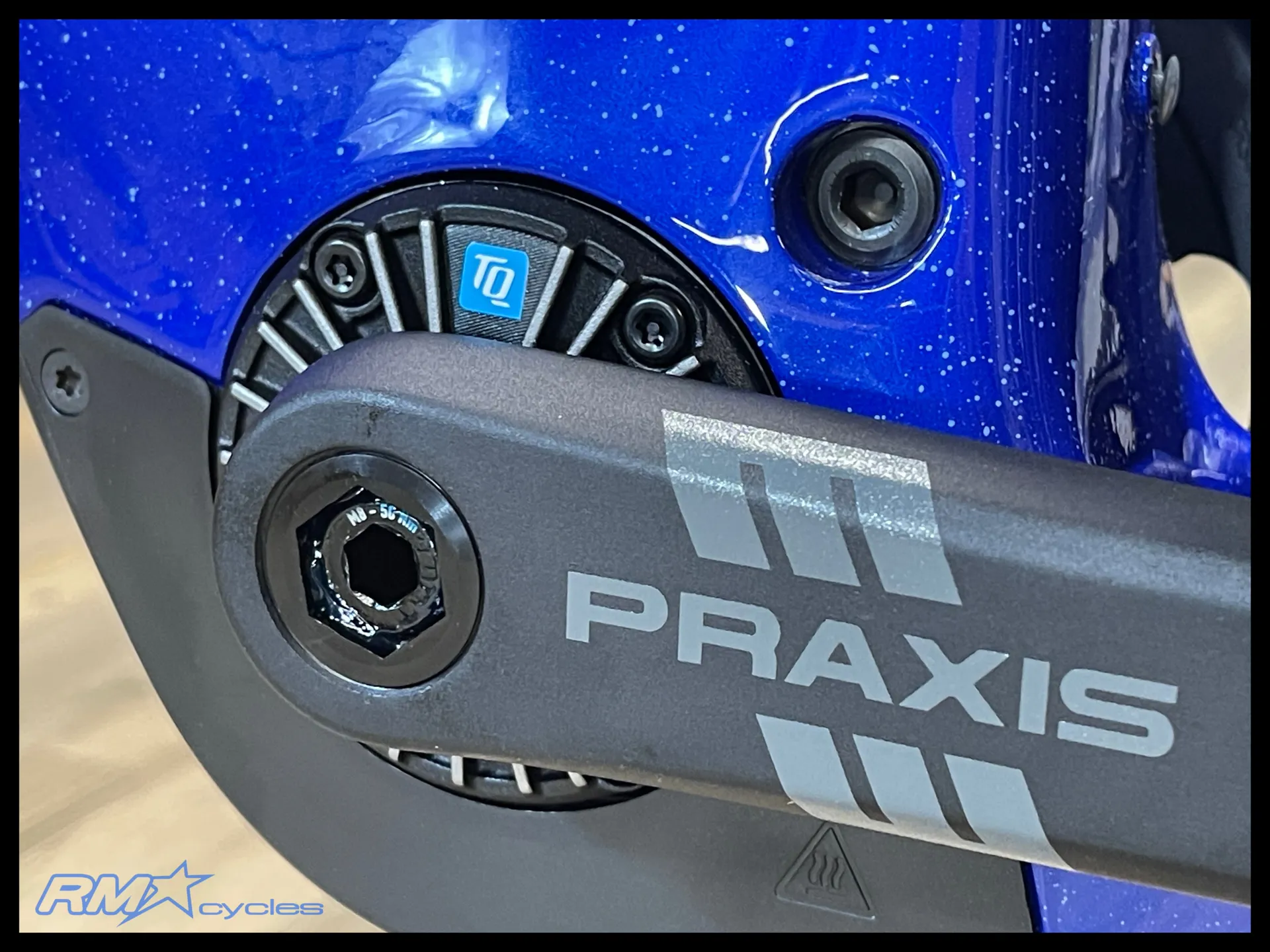

  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • E-bike classification
    Class 1

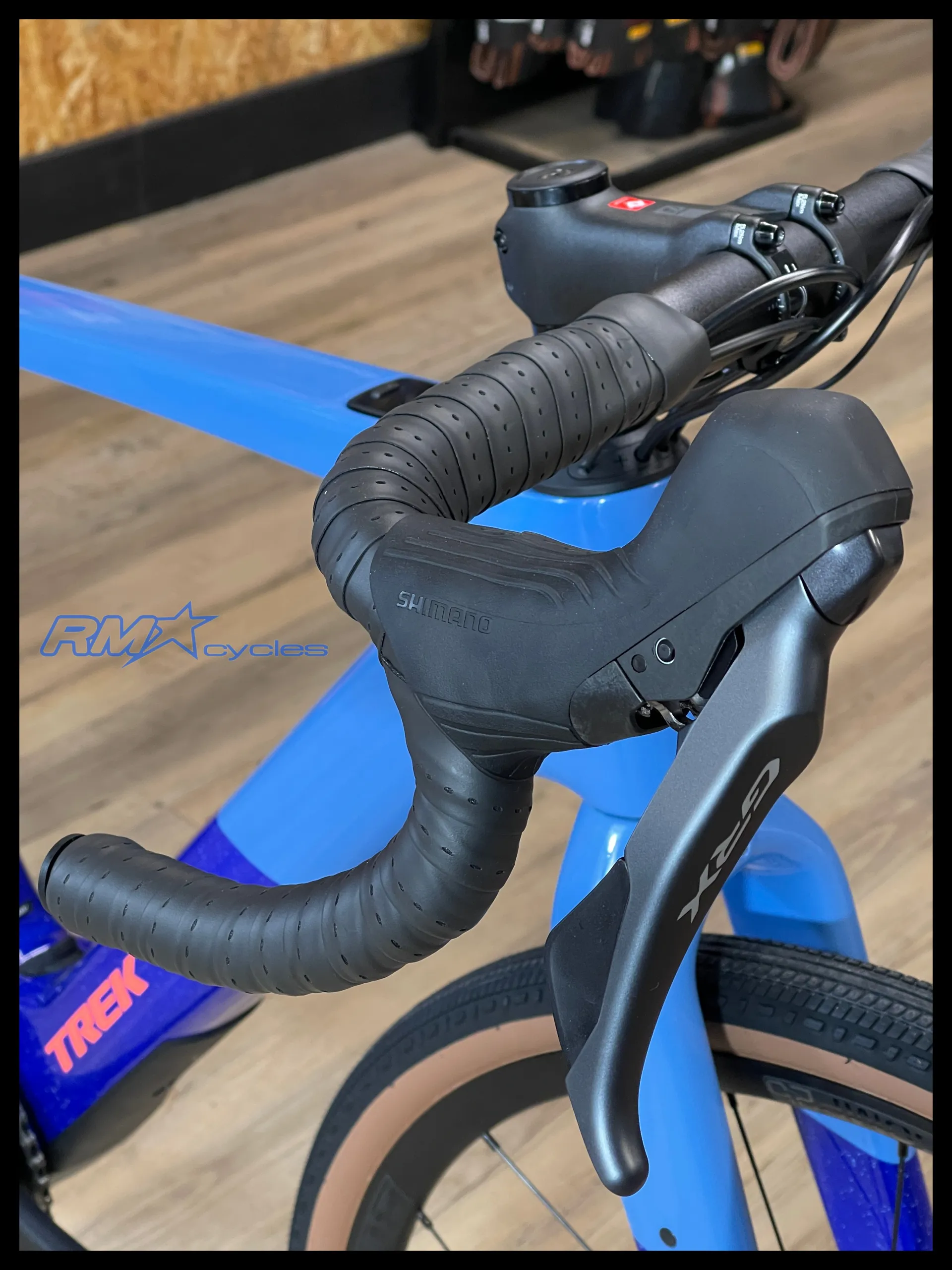

  • Shifter
    Shimano GRX RX820, 12-speed

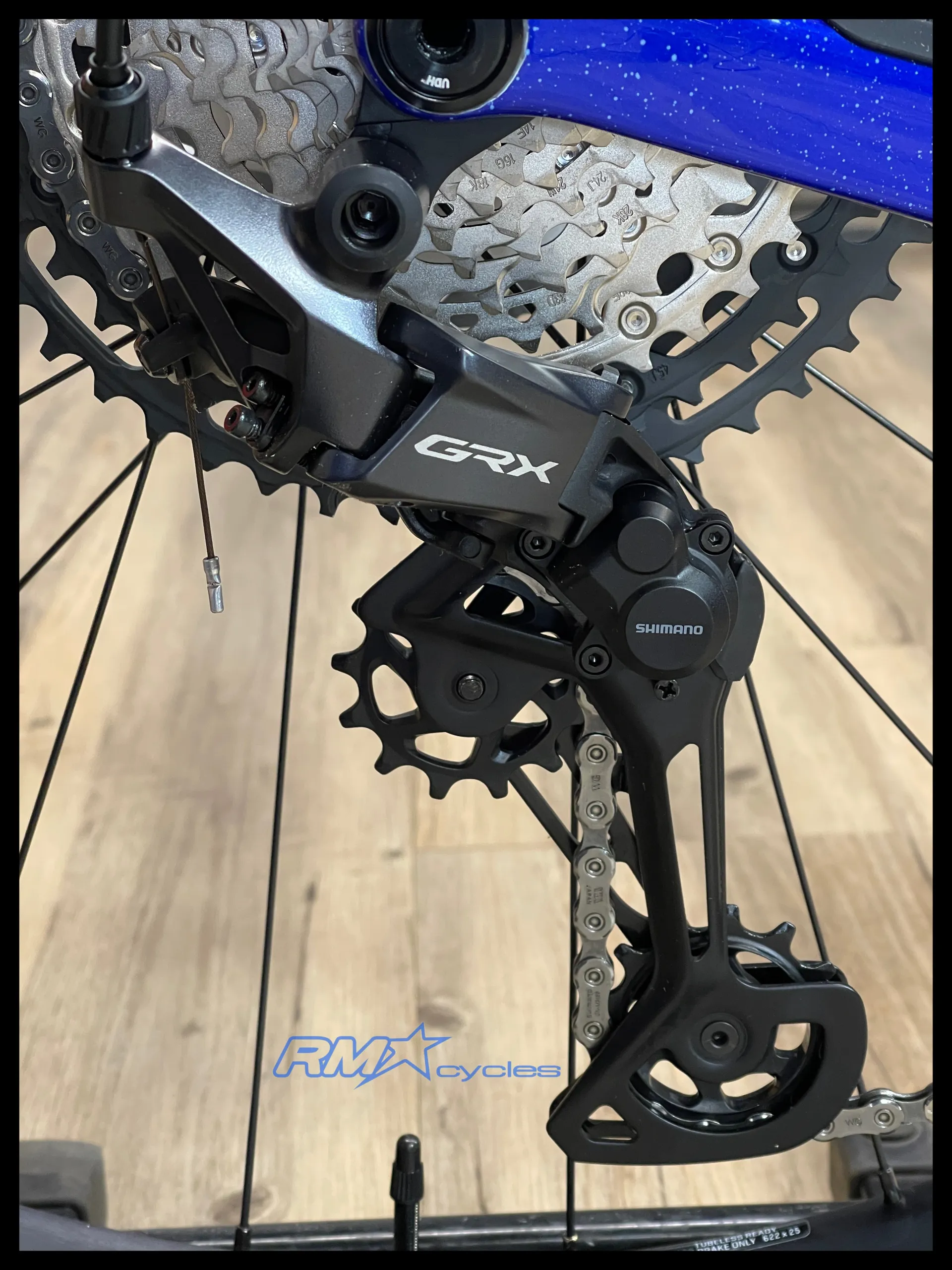

  • Rear derailleur
    Shimano GRX RX822, 51T max cog

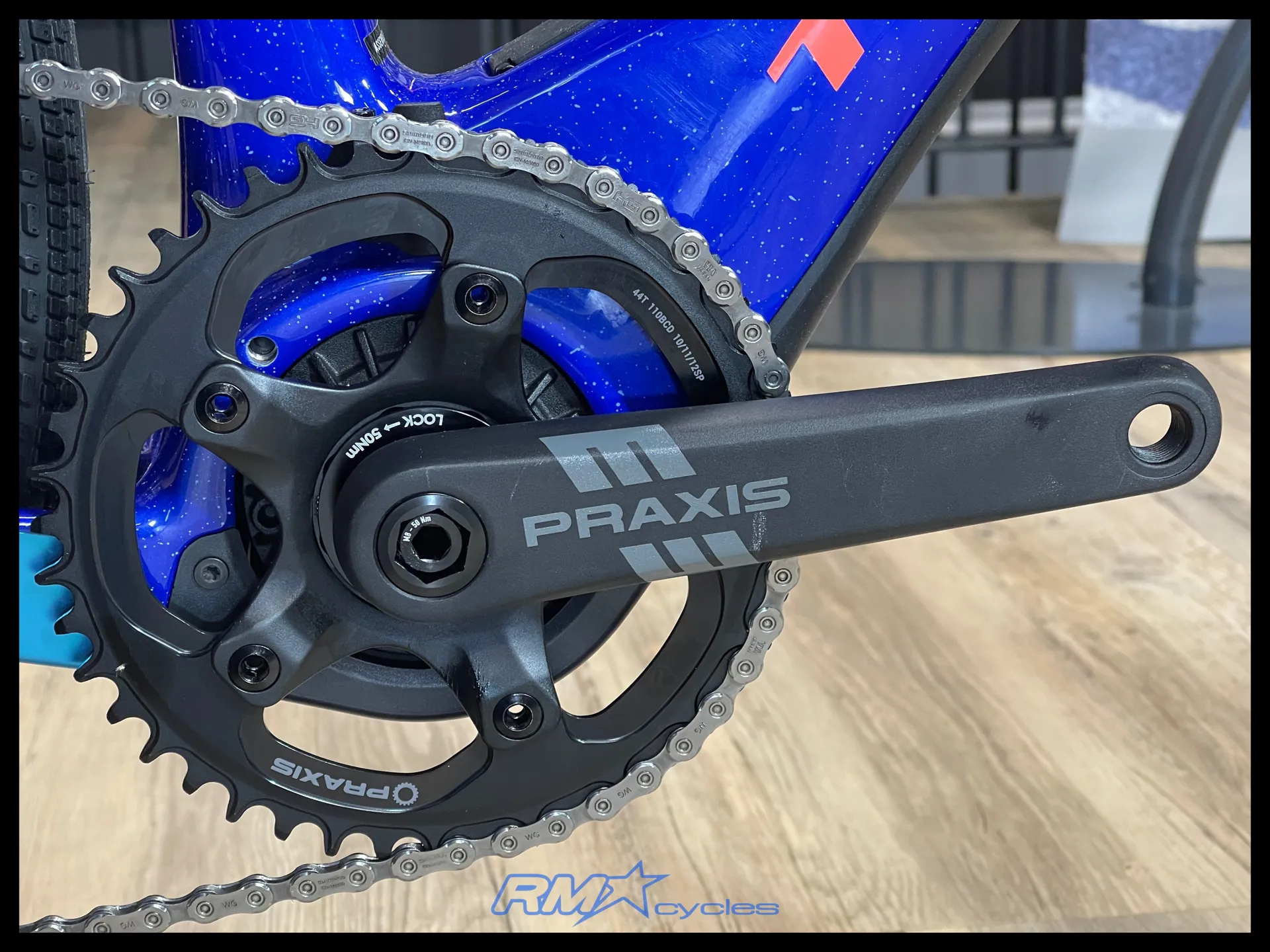

  • Crank
    Size: XS, S: Praxis Alloy, 165 mm length; Size: M, ML: Praxis Alloy, 170 mm length; Size: L, XL: Praxis Alloy, 172.5 mm length
  • Cassette
    Shimano XT M8200, 10-51, 12-speed
  • Chain
    Shimano XT M8100, 12-speed
  • Max. chainring size
    1x: 44T
  • Wheel front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever

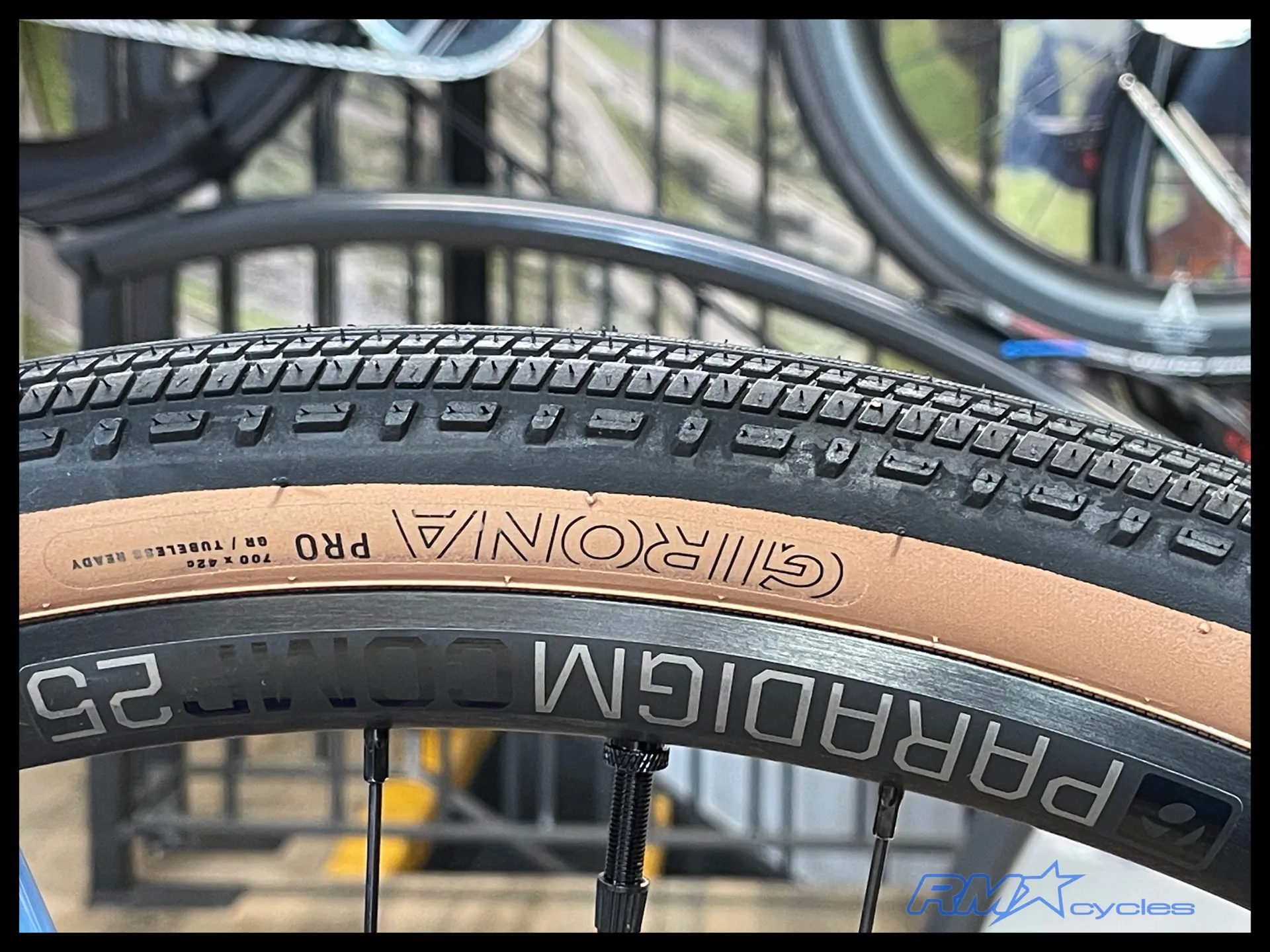

  • Tyre
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
    Size: XS, S: Bontrager Elite Gravel, alloy, 40 cm width; Size: M, ML: Bontrager Elite Gravel, alloy, 42 cm width; Size: L: Bontrager Elite Gravel, alloy, 44 cm width; Size: XL: Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: XS: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: ML, L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length

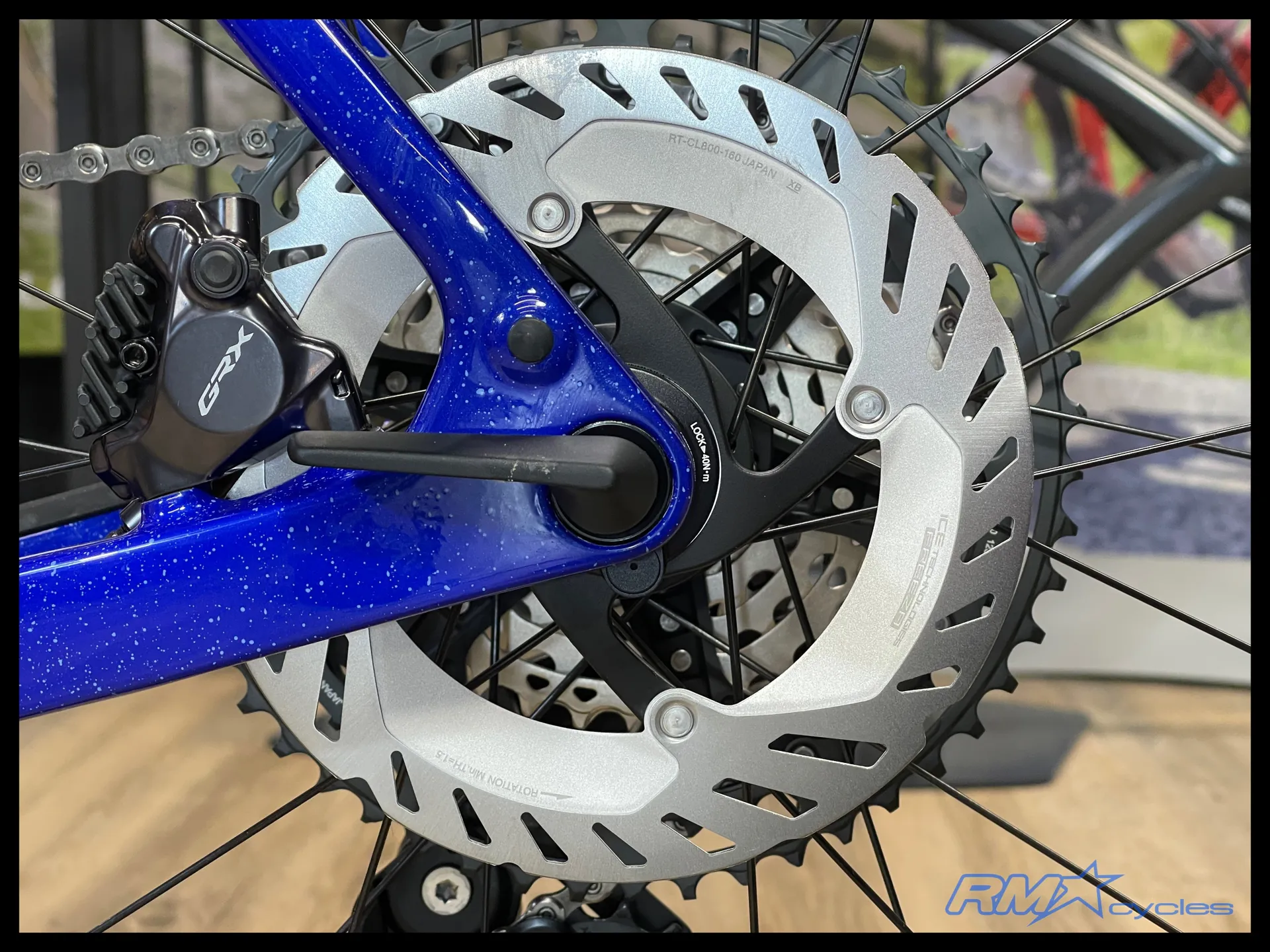

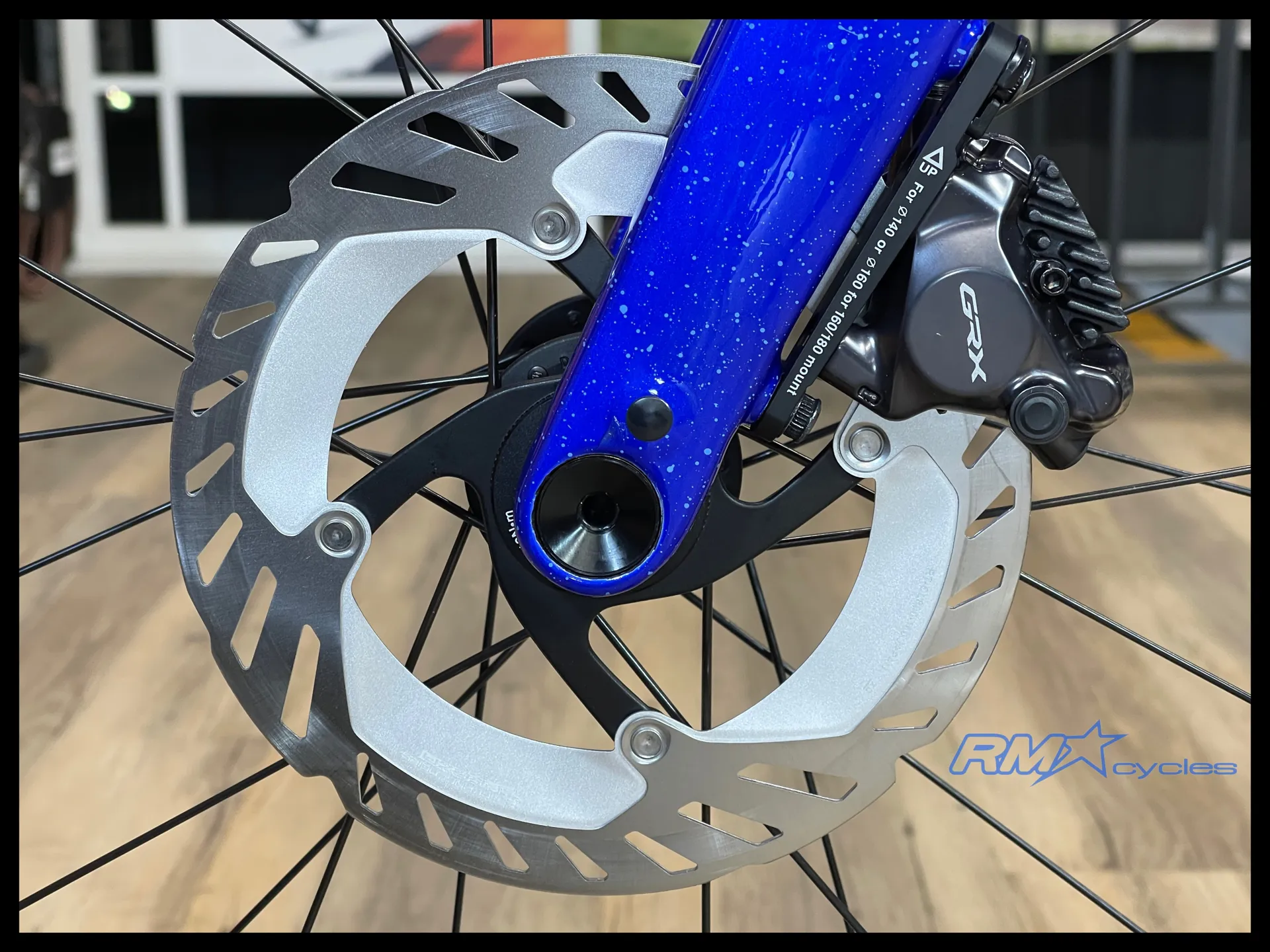

  • Brake rotor
    Shimano CL800, CentreLock, 160 mm
  • Brake lever
    Shimano GRX RX820, 12-speed
  • Rotor size
    Max brake rotor sizes: 180 mm front and rear
