Mountain Bike Brake Comparison Test

Design & Build Quality

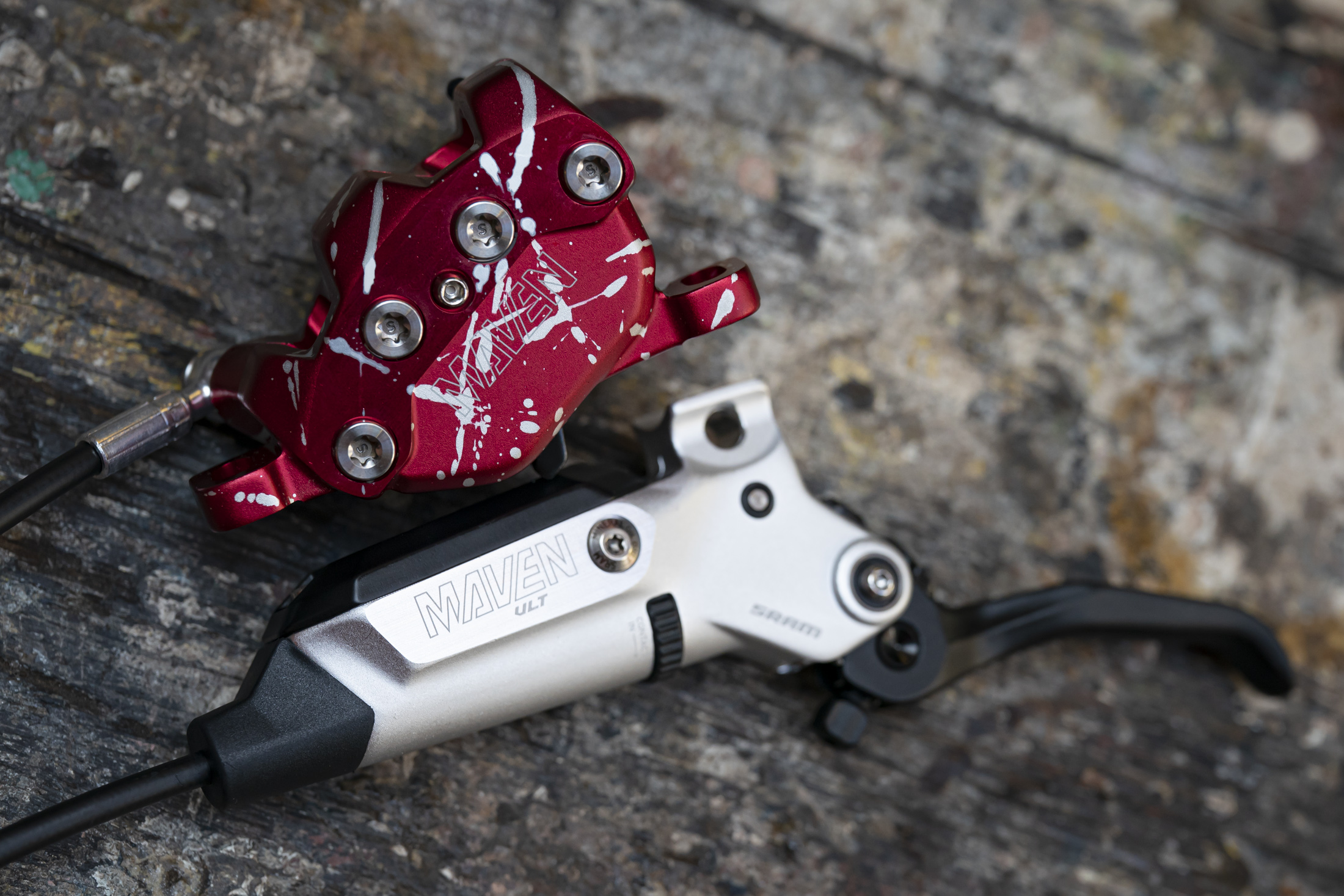

The Maven Ultimate is built like a powerhouse. Its caliper houses big 18 mm and 19.5 mm pistons, which deliver truly impressive stopping force. SRAM+2BikeRadar+2 The lever body is polished, it has titanium hardware, and both reach and bite point are adjustable without tools. SRAM Using mineral oil helps with maintenance, and the bearing pivot in the lever gives a smooth feel. SRAM+1 The downside is that its massive caliper makes pad changes a little more involved, as the design blocks top access to the pads. BikeRadar

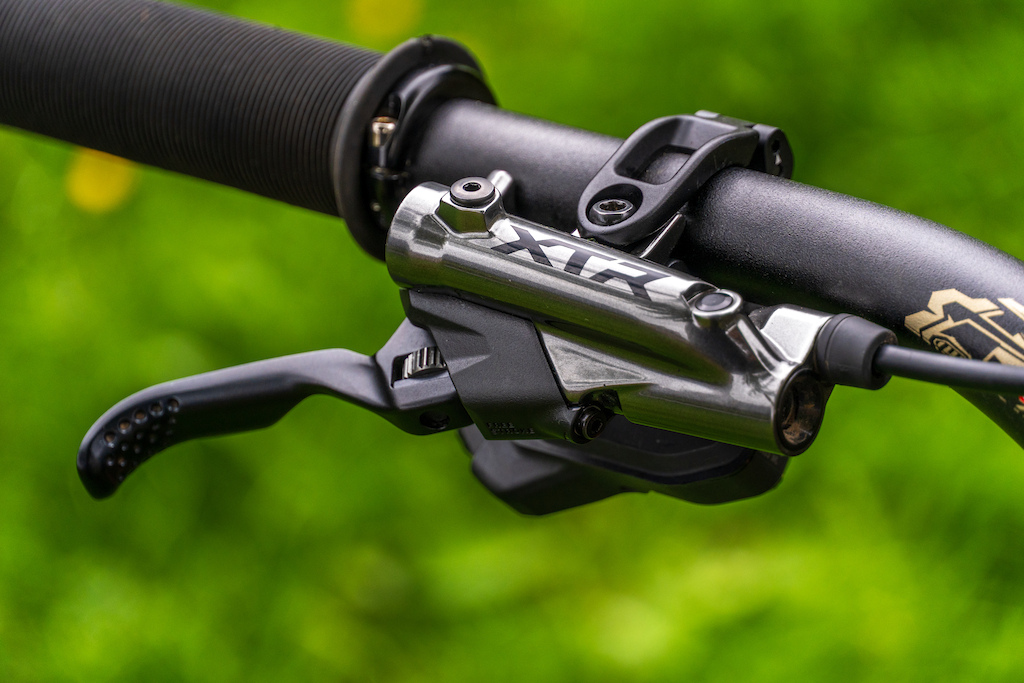

On the other hand, the Shimano XTR M9120 is machined from a single cold-forged piece — a mono-body design that maximizes stiffness and reduces flex. Shimano Bike It uses four ceramic pistons, which are lightweight and help insulate the system thermally. Biketart+1 Its lever features Shimano’s Servo-Wave technology, giving you quick pad engagement and a predictable feel, and it has a tool-free reach adjuster. ebike24.com The XTR’s one-way bleed system is user-friendly, and the brake is compatible with Shimano’s ICE-TECH rotors for better heat management. Shimano Bike

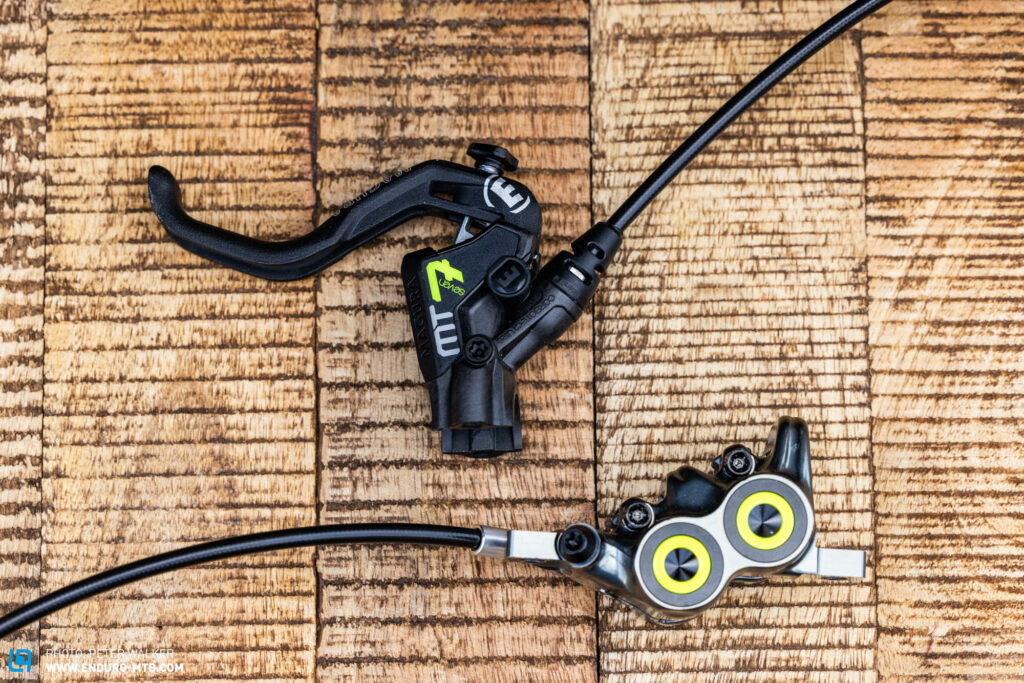

The Magura MT7 feels very purpose-built for gravity or aggressive trail riding. Magura’s construction is rugged — the lever is made from lightweight Carbotecture material, and the caliper is forged aluminum. brakes+1 It uses four pistons, and thanks to Magura’s “MagnetiXchange” system, each pad has its own piston, which helps with consistent power and heat distribution. britbikepro.com The brake fluid is Magura’s “Royal Blood,” a mineral oil, which makes bleeding a little more forgiving and less corrosive than DOT, but still demands proper care.

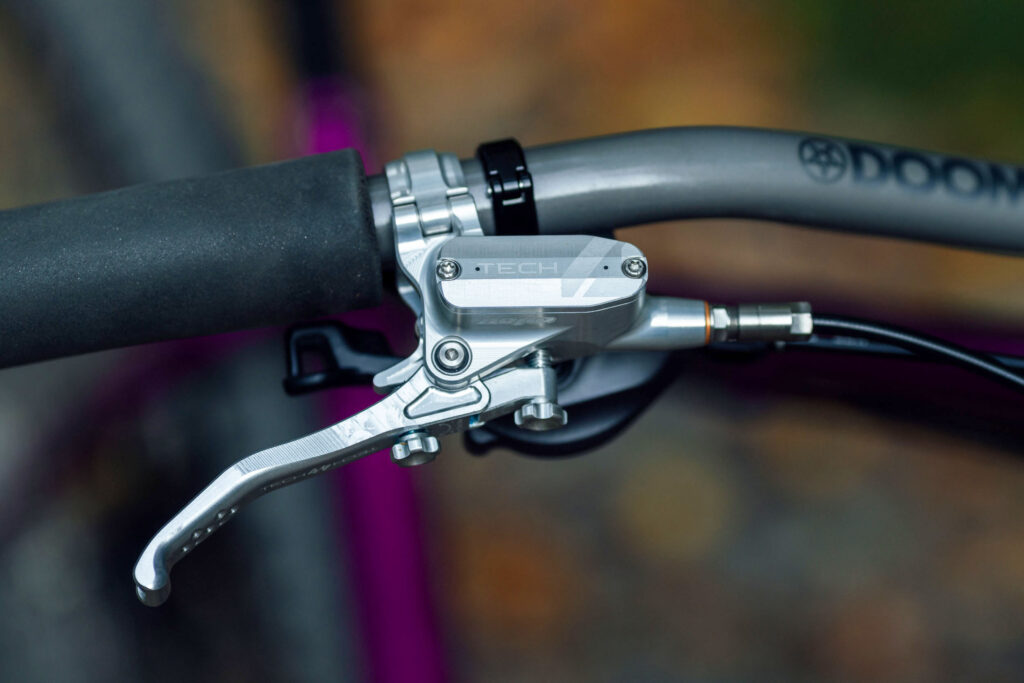

Finally, the Hope Tech 4 E4 is very refined. The lever has been redesigned for 30% more power (vs the older Tech 3) by optimizing the hydraulic leverage. flowmountainbike.com+1 Inside, the piston design is “hybrid”: phenolic inserts wrapped in stainless steel, giving a good balance of durability, smooth piston motion, and heat resistance. hopefrance.com The caliper is CNC-machined from a solid block of 2014-T6 aluminum, which keeps things stiff and consistent. hopetech.com For fluid, it uses DOT 4.0 or 5.1, which gives very high boiling point performance, though DOT requires more cautious maintenance than mineral oil. hopefrance.com

Performance on the Trail

When it comes to raw stopping power, the Maven Ultimate is probably the most aggressive. Thanks to its large pistons and rigid caliper, it brings serious anchor ability — great for heavy bikes, downhill runs, or situations where you want maximum deceleration.

The XTR M9120 doesn’t quite match Maven’s brute force, but where it shines is in modulation. Its lever-to-pad feel is very predictable, and the Servo-Wave action helps you modulate power smoothly. Also, because of the mono-body caliper and ceramic pistons, it stays remarkably consistent under heat, especially when paired with ICE-TECH rotors.

The MT7 is a sort of hybrid: very powerful, but also very usable. Riders often say it doesn’t feel like just “brute stop,” but that it gives great control. Its piston-per-pad architecture helps with even pad wear and reliable bite even when things get hot. That said, some users report that bleeding can be a bit fiddly, and if the pistons are not maintained, they can stick or rub after long use. Reddit

With the Hope Tech 4 E4, the standout is its feel. The lever is very smooth, low-effort, and the modulation is excellent — even though there’s plenty of power on tap, it’s delivered in a very controllable, linear way. In longer, demanding descents, the E4 holds up well: heat is managed, the bite point stays stable, and hand fatigue is less of an issue compared to more aggressive brakes.

Reliability & Maintenance

For maintenance, Maven Ultimate benefits from mineral oil’s corrosion resistance, but it does require care in bleeding, and using the right oil (SRAM recommends their own Maxima Mineral Brake Oil) is important. SRAM The large caliper means pad changes are not super quick, but the tool-free adjusters help.

Shimano XTR is well supported, parts are widely available, and the one-way bleed system is straightforward. Ceramic pistons are durable, but as with any 4-piston system, regular bleeding and pad care will be needed for optimal performance.

The MT7 offers a long “leak-proof” guarantee (Magura’s service is solid), but the mineral-oil system still means you need to keep pistons clean, bleed properly, and watch for rubbing over time. People often mention you should “exercise” the pistons after hard use to keep things moving well.

With the Hope E4, bleeding is more critical due to the DOT fluid (you must use DOT 4 or 5.1) and the hybrid pistons. If the pistons get dirty or gritty, they can stick, so periodic cleaning and lubrication (with silicone lubricant) is recommended. workmatejigs.com+1 On the plus side, Hope’s engineering is very service-friendly, with high-quality spare parts and rebuildability.

Which One Is Best for You?

If you’re riding downhill, enduro, or very aggressive terrain, and you want massive stopping power, the Maven Ultimate is a killer choice. Its force and durability make it ideal for big hits.

If you’re more into enduro, trail racing, or all-mountain, and value feel and modulation alongside good power, the XTR M9120 is probably the most balanced option.

If you ride gravity, e-MTB, or heavy bikes, but don’t want a brake that just grabs — you want control — the MT7 is fantastic. It’s strong, predictable, and built for long descents.

Finally, if you want a premium, precision-engineered brake that gives excellent feedback and reliability — and you’re okay with DOT fluid maintenance — the Hope Tech 4 E4 is a top-tier pick. The way it delivers power smoothly is especially appealing for technical or sustained terrain.
